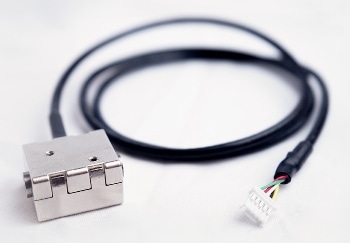

DJIP-TC miniaturized flow-thru sensor with IP63 water ingress protection

Viatran’s DJIP-TC is a miniaturized model of the Flow-Thru Sensor with zero dead volume. It comes with IP63 water ingress protection.

The sensor is actively temperature-compensated to decrease the temperature-related drift. It has been developed with low-noise circuitry and a differential output of 0 to 4 VDC to decrease the impacts of environmental noise.

Features

  • RoHS-compliant
  • REACH-compliant
  • Zero dead volume
  • Robust stainless steel and Grade 5 titanium construction

Specifications

Source: Viatran

. .
Internal Volume 13 uL
Excitation and Output 5 VDC Excitation, 0-4 VDC Output with
2.75 V Nominal Common Mode Voltage
Pressure Ranges 0-500 psig to 0-30 k psig
Wetted Material 316SS or Grade 5 Titanium Alloy
(required for 0-1000 psig or below)
Process Fitting Options 10-32, 1/4-28 (gasketed), 1/16" FNPT
Standard Cable Length 8" with Four [4] Flying Leads
(Custom lengths available by request)
Approvals RoHS and REACH Compliant
