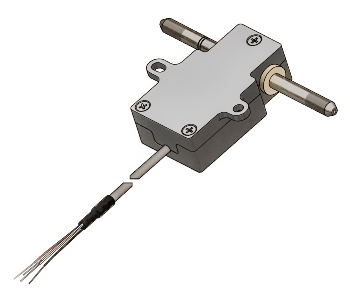

HB thru-flow sensor for high-pressure applications

HB sensor is a strong version of the original DF2 Thru-Flow sensor developed for high-pressure applications.

Equipped with zero dead volume, this rugged model of the original DF2 Flow-Thru sensor uses high-pressure fittings to safely quantify process pressures of up to 60,000 psig.

Features

  • Zero dead volume
  • High-pressure applications
  • RoHS-compliant
  • REACH-compliant
  • Robust stainless steel construction

Specifications

Source: Viatran

. .
Flow-thru Element Length Available in 4" length or 6" length
Excitation and Output 9-26 VDC Excitation, 0.5-5.5 VDC Output
(Or 5 VDC Excitation, 0.5-4.5 VDC Output By Request)
Pressure Ranges 0-15000 psig to 0-60000 k psig
Wetted Material 316SS or Grade 5 Titanium Alloy
Process Fitting Options High Pressure Nipple
Standard Cable Length 8" with Four (4) Flying Leads
(Custom lengths available by request)
Approvals RoHS and REACH Compliant
