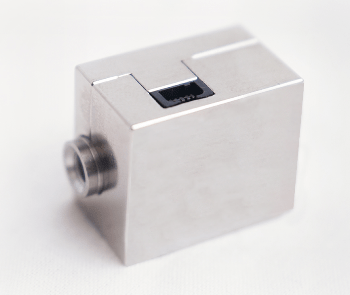

LVI sensor: Miniaturized thru-flow sensor

Viatran’s LVI sensor is a miniaturized version of the Thru-Flow Sensor equipped with an onboard ASIC chip for reduced internal volume and noise reduction.

A compact model of the Flow-Thru Sensor with zero dead volume, the LVI sensor decreases noise via filtering. It has been customized with a smaller inner diameter of 0.020″ to decrease the internal volume to 1.6 mL.

Features

  • Grade 5 titanium construction
  • Zero dead volume
  • REACH-compliant
  • RoHS-compliant

Specifications

Source: Viatran

. .
Internal Volume 1.6 uL
Excitation and Output 5 VDC Excitation, 0.5-4.5 VDC Output
Pressure Ranges 0-2500 psig to 0-30 k psig
Wetted Material Grade 5 Titanium Alloy
Process Fitting Options 10-32
Standard Cable Length 8" with Four (4) Flying Leads
(Custom lengths available by request)
Approvals RoHS and REACH Compliant
