Overview

The PhotoGel® is a sterile, lyophilized, high degree of methacrylation (~95%) methacrylated gelatin. PhotoGel® offers 3D hydrogels with the special attributes to be made at several concentrations and photocrosslinked (needs a photoinitiator) to offer different gel stiffness.

Advanced BioMatrix provides PhotoGel®, a purified and lyophilized methacrylated gelatin for photocrosslinkable hydrogels. PhotoGel® offers 3D tunable gels with the special attributes to be made at several concentrations and crosslinked to offer different gel stiffness.

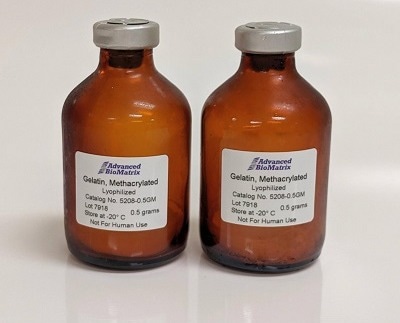

The PhotoGel® comprises purified methacrylated porcine gelatin (1 gram). The gelatin is type A 300 bloom. The separate product just contains the methacrylated gelatin. The kits are available with the chosen photoinitiator (separate, as a powder).

PhotoGel® ~95% DOM

Image Credit: Advanced BioMatrix

PhotoGel® ~95% DOM

Image Credit: Advanced BioMatrix

PhotoGel® ~95% DOM

Image Credit: Advanced BioMatrix

Table 1. Source: Advanced BioMatrix

Item Catalog Number Photoinitiator Included
PhotoGel #5208 N/A
PhotoGel with Irgacure #5215 Irgacure (365 nm)
PhotoGel with LAP #5272 LAP (405 nm)
PhotoGel with Ruthenium #5273 Ruthenium (400-450 nm)



PhotoGel® has been produced from methacrylated gelatin where the gelatin has been altered by reacting the free amines, mainly the ε-amines groups of the lysine residues as well as the a-amines groups present on the N-termini. Over 75% of the complete lysine residues of the gelatin molecule have been methacrylated.

The photoinitiator comprises Irgacure 2959 to be developed in methanol (methanol not included) enabling UV crosslinking of the collagen measuring at 365 nm.

Table 2. Source: Advanced BioMatrix

Parameter, Testing, and Method Methacrylated Gelatin #5208
Sterilization Method Filtration
Sterility - USP modified No growth
Form Lyophilized Powder
Package Size 1 gram (2 x 500 mg)
Storage Temperature -20 °C
Shelf Life Minimum of 6 months from date of receipt
Degree of Methacrylation ≥ 75%
Source Type A, 300 Bloom, Porcine Gelatin

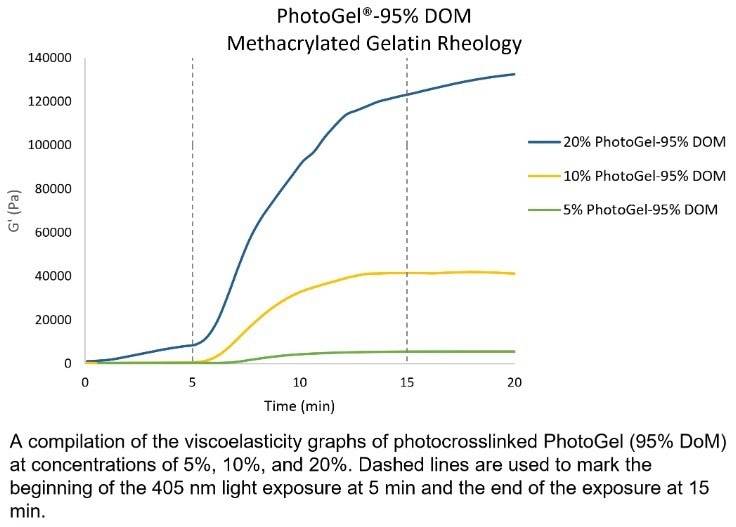

Hydrogel Young's Modulus E (Pa) Characteristic
