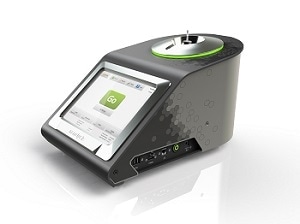

Customize Experiments with the Nanalysis 60PRO Next Generation Compact NMR Spectrometer

The Nanalysis 60PRO spectrometer from Nanalysis is an advanced NMR instrument specifically developed for industry customers with a compact size and market-leading weight; advanced features and multi-nuclear support; and excellent return on investment.

The instrument operates at 60 MHz (1.4 T) and delivers a resolution of 1 Hz and a sensitivity of 100:1 SNR (single scan, 1% ethylbenzene).

The Nanalysis 60PRO can be adjusted to obtain spectra for several conventional spin-active nuclei, thus improving its use for charting a wide range of both natural and synthetic products.

The spectrometer supports the following nuclei: 1H, 7Li, 11B, 13C, 19F, and 31P (twin mode).

The Nanalysis 60PRO enables access to the pulse programming interface, allowing users to adjust their own experiments or load or tweak pre-existing experiment from a range of 1D, relaxation, homo- and hetero-nuclear 2D templates. This includes T1, T2, COSY, DEPT, Nutation, HETCOR, signal suppression, HSQC, and decoupling.

Compact, Portable and Energy-Efficient

The benchtop NMR spectrometer, Nanalysis 60PRO, can be used in many applications. It has a compact footprint, is lightweight and is easy-to-site, therefore making it easy to use anywhere, anytime. The Nanalysis 60PRO spectrometer can be plugged into regular power outlets and consumes minimal energy. When not in use, it can be set to a power-saver mode.

The Nanalysis 60PRO can be employed with standard NMR sample volumes and typical 5 mm NMR tubes. Moreover, the permanent magnet eliminates the need for cryogens and weekly maintenance. The enclosure is also integrated with five Gauss lines.

Nanalysis 60 MHz benchtop NMR at SpiroChem

Nanalysis Customer Testimonial: Benchtop NMR at SpiroChem

Video Credit: Nanalysis Corp.

User-Friendly and Quick

The advanced Nanalysis 60PRO enhances workflow and therefore improves research productivity. The high-tech on-board software is custom-made for easy data acquisition and analysis.

Several pre-existing experiments are defined with standard parameters that can be tweaked as desired. It helps in saving and loading standard NMR experiments and data collection on demand, to render simpler data collection and analysis.

Simple Reaction Monitoring

The onboard user interface helps in acquiring single spectrum or multi-spectral data rapidly. Speciation plots, reaction monitoring, and kinetics experiments are simplified with basic manual integration cuts and plotting procedures.

Additionally, many connectivity options are available to transfer data that can later be printed and processed as required. Secure and accessible data is ensured through USB, Ethernet, WiFi, secure login, and separate user profiles.

Configure, Acquire and Examine

Preferred experiments can be selected, and acquisition parameters can be altered from pop-up menus. After making the configuration, data can be gained by simply choosing “GO.”

After the data is achieved, the initial scan is shown which is subsequently updated in every additional four scans. Moreover, progressive on-board data processing makes it very simple to process and analyze 1D, 2D, and multi-spectral data. This spectral data is stored as standard .jdx files and can be used with a range of third-party software tools.

60 MHz Benchtop NMR Demo

Video Credit: Nanalysis Corp.

Key Features

The key features of the Nanalysis 60PRO NMR spectrometer are listed below:

  • Energy-efficient
  • Compact and portable — weighs only 58 lbs
  • Uses regular 5 mm NMR tubes
  • Traditional sample preparation
  • Low maintenance
  • Large 10″ touch screen display
  • Limited stray magnetic field
  • Kinetics capabilities for easy reaction monitoring
  • Pulse Program Control allows users to alter their own experiments; alternatively, users can also utilize one of the templates... T1, T2, COSY, HSQC, Nutation, DEPT, and HETCOR
  • Can be plugged into regular wall outlet
  • Decoupling and signal suppression
  • Network printing
  • Export to shared folders
  • Secure login and user profiles
  • Internet-based support (optional)

Technical Specifications

The specifications of the Nanalysis 60PRO NMR spectrometer are given below:

Source: Nanalysis Corp.

. .
Operating Frequency: 60 MHz (1.4 T)
Magnet: Permanent, no cryogens
User Interface: Built-in Touchscreen
Nuclei: 1H, 7Li, 11B, 13C, 19F and 31P (dual mode)
Lock: Deuterium with non-deuterium options
Sample: Standard 5 mm NMR tubes
Compatibility: JCAMP-DX, Mestrelab MNova, LabVIEW, NMRFx, SPINit
Resolution: Line-width at 50% <1 Hz
Sensitivity: 100:1 (EtBz 1% single scan)
Stray Field: 2 Gauss line contained within enclosure
Operating Temp: 18-26 °C
Power: 100-240 VAC, 50-60 Hz
Dimensions: 12 x 11 x 19" (30 x 28 x 49 cm)
Weight: 58 lbs (26.3 kg)
