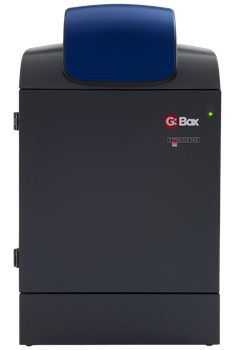

G:Box Chemi XX6/XX9 for Detailed Image Analysis

Synoptics’ G:Box Chemi XX6/XX9, the Western blot imaging system, offers users greater flexibility in identifying proteins. This robust system, driven by Syngene’s GeneSys software, allows users to select from a wide range of chemiluminescence and fluorescence reagents from any manufacturer to detect proteins in their own unique method.

Using a 6-or 9-megapixel camera with HI-LED lighting choices, users can achieve sensitive, publication-quality images with little background interference. In addition, the system includes infinite copies of GeneTools analysis software to assist users in making the most of their data.

The G:Box XX6/9 system is ideal for gel documentation, imaging, and analysis in the lab. The in-house developed, free software with unlimited licenses assures that users can detect chemiluminescence successfully and efficiently.

This device is ideal for imaging a variety of sample sizes and kinds, including chemiluminescent blots and fluorescence 1D and 2D gels.

The free updates provided by GeneSys automated control software, powered by a database with hundreds of capture protocols, guarantee that the user’s system stays updated with the latest technological advancements. The G:Box XX6/9 has a variety of lighting and manual control choices.

Source: Synoptics Ltd

SYSTEM G:Box chemi XX6 G:Box chemi XX9
Image resolution (pixels m) 6 9
Effective resolution (pixels m) 18 27
A/D 16 bit 16 bit
Greyscales 65,536 65,536
Dynamic range OD 4.8 4.8
Quantum efficiency @ 425 nm 73% 73%
Lens (motor driven) F0.80 or F0.95 F0.80 or F0.95
Stage Moving Moving
Filter wheel
(7 position motor driven)
All fluorescence applications All fluorescence applications
UV filter Yes Yes
Use with external PC Yes Yes
Max image area (cm) 34.5×27.6 or 32.3×25.6 34.5×27.6 or 32.3×25.6
Min image area (cm) 15.6×12.5 or 15×11.8 15.6×12.5 or 15×11.8
WxHxD (cm) 57x99x55 57x99x55
Weight (kg) Approx. 45 Approx. 45
Power Input (V) 100-240 100-240
Epi LED White Lights Yes Yes
HiLED (Red, Blue, Green) Optional Optional
HiLED (Red, Infrared) Optional Optional
HiLED (Red, Blue, Green, Infrared) Optional Optional
HiLED (UV, Far Red) Optional Optional
Visible Light Converter Optional Optional
Blue Converter Screen Optional Optional
Slide-out UV Transilluminator
302 nm (20 cm x 20 cm)
Optional Optional
Edge Lighting Unit Optional Optional

Software is compatible with Windows 11*
*In-house testing has revealed no issues with the current version of Windows 11 (22H2 Update Version 22621.1702)

GBOX Chemi XX6/XX9 Tutorial

GBOX Chemi XX6/XX9 Tutorial. Video Credit: Synoptics Ltd

G:BOX Chemi XRQ gel doc system - angled view.

G:BOX Chemi XRQ gel doc system - angled view. Image Credit: Synoptics Ltd

G:BOX Chemi XX6/XX9 gel imaging system - inside view.

G:BOX Chemi XX6/XX9 gel imaging system - inside view. Image Credit: Synoptics Ltd

G:BOX Chemi XX6/XX9 gel imaging system - side view.

G:BOX Chemi XX6/XX9 gel imaging system - side view. Image Credit: Synoptics Ltd
