Overview
SCIENION’s sciFLEXARRAYER S100 is the ultimate high-throughput production equipment that seems to be consistent with numerous dispensing technologies.
Features
Customizable to meet users’ needs

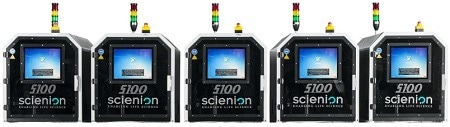

The targets have been placed on tailored carriers that tend to shift towards the dispense head fixed on every S100 portal and carriers are transferred in between the S100 portals with the help of a conveyor belt.
For customer-specific applications, the system could be altered to fulfill any request for a range of carrier formats. Every portal could be fitted with up to 12 liquid channels.
This modularity enables accurate configuration of the system to the needed production volumes. It fulfills the high throughput production requirements of the majority of the bioarray formats like microplates, wafers, slides, and a range of biosensors.
Earlier being utilized by several diagnostic companies throughout the world

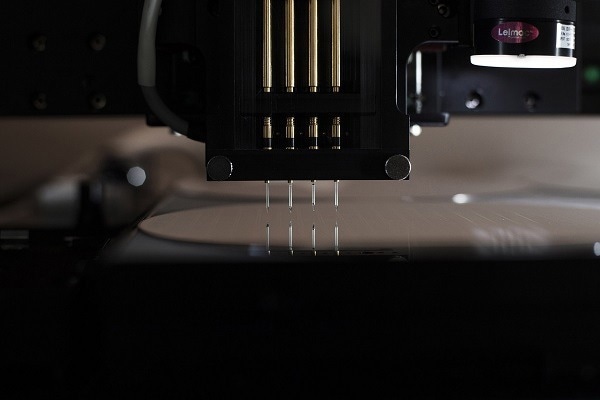

In-line production of diagnostic tests and other biosensors
Image Credit: Scienion
Production in unlimited batch size
Consistent and highly reproducible in-line production, and there is no capacity limit.
Printing into 96 well plates including swing
Swing high-throughput microarray spotter. Picoliter and nanoliter dispensing
Video Credit: Scienion
Specifications
Source: Scienion
| . |
. |
| Dispense Volume |
30 – 800 pL/drop |
| No. of Portals |
Unlimited |
| No. of Dispense Capillaries |
Up to 12 in each portal |
| Distance Dispense Capillaries |
9 mm increments |
| 3D Dispense Control |
Integrated CCD and two 3D drop cameras |
| Axis system |
X-Y magnetic – Z spindle drives, conveyor belt |
| Resolution (step) |
1 µm |
| Precision |
< 3 µm |
| Accuracy |
< 5 µm |
| Dimensions (L,W,H) with enclosure |
1300 x 800 x 1200 mm |
| Weight |
420 kg each portal |
