Successfully counting SF9 cells for cell viability

Insect cells like the SF9 cell line separated from Spodoptera frugiperda are generally utilized in the process of recombinant protein production with the help of baculovirus.

This technique of protein production requires precise knowledge of SF9 cell counts and viability to authorize healthy cells to produce protein and successful transfection.

This technical note explains how the CellDrop FL Automated Cell Counter allows quick and precise cell viability and cell count determination. Two techniques were utilized to quantify cell viability: Trypan Blue dye exclusion and Propidium Iodide fluorescent dye labeling or Acridine Orange.

Materials and methods

SF9 cells were mildly sloughed from culture for the maintenance of viability. Furthermore, cells were centrifuged at 100 g and resuspended in PBS for counting.

Trypan blue

The cells present in PBS were blended in the ratio 1:1 with Trypan Blue (DeNovix CAT #CD-TRY-1.5) and counted with the help of the Trypan Blue app on the CellDrop Cell Counter by making use of the default protocol explained below:

Table 1: SF9 counting protocol for the Trypan Blue app. Source: DeNovix Inc

. .
Dilution Factor 2
Minimum Diameter 6
Maximum Diameter 30
Live Roundness 50
Dead Roundness 25
Stained Threshold 35
Small Cell Mode OFF
Irregular Cell Mode OFF



AO/PI

SF9 cells in PBS were blended in the ratio of 1:1 with AO/PI (DeNovix CAT #CD-AO-PI-1.5) and counted in the AO/PI app on the CellDrop Cell Counter using the protocol explained below:

Table 2: SF9 counting protocol for the AO/PI app. Source: DeNovix Inc

. .
Dilution Factor 2
Minimum Diameter 8
Maximum Diameter 20
Live Roundness 1
Dead Roundness 1
Green FL Threshold 1
Red FL Threshold 12
Irregular Cell Mode OFF



Results and summary

The CellDrop Automated Cell Counter helps count cells and reports their viability, thereby surrounding dead cells in red and live cells in green. The Trypan Blue app determines unstained cells as live and stained (dark) cells as dead and further labels them as such (Figure 1).

Successfully counting SF9 cells for cell viability

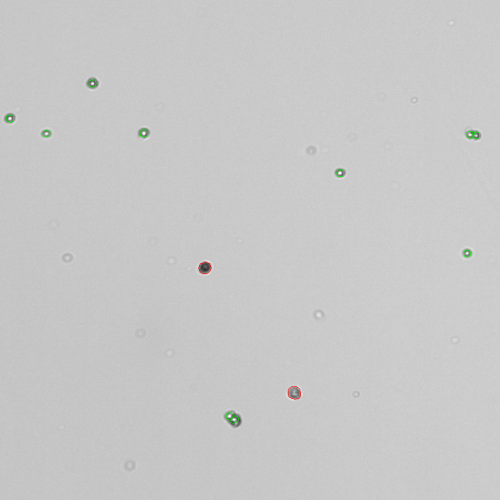

Figure 1. SF9 cells counted in the Trypan Blue app on the CellDrop Automated Cell Counter. Live cells are circled in green and dead, stained cells are circled in red. Image Credit: DeNovix Inc

The AO/PI app determines green-fluorescing cells as viable live cells, and red-fluorescing cells as dead (Figure 2). CellDrop allows quick and precise counting and identification of live and dead cells in a range of mammalian and other cell types, such as the SF9 insect cell line.

Successfully counting SF9 cells for cell viability

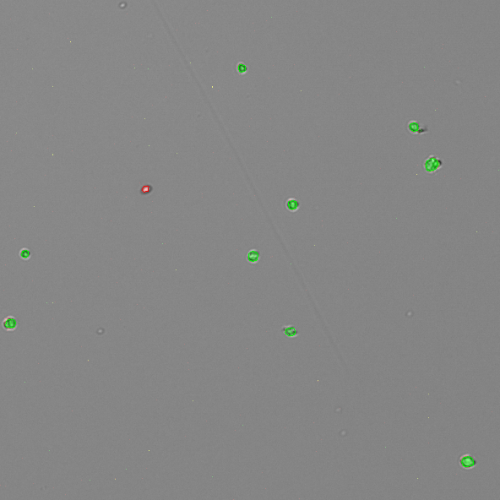

Figure 2. SF9 cells counted in the AO/PI app on the CellDrop Automated Cell Counter. Green-fluorescing live cells are circled in green and red-fluorescing dead cells are circled in red. Image Credit: DeNovix Inc
