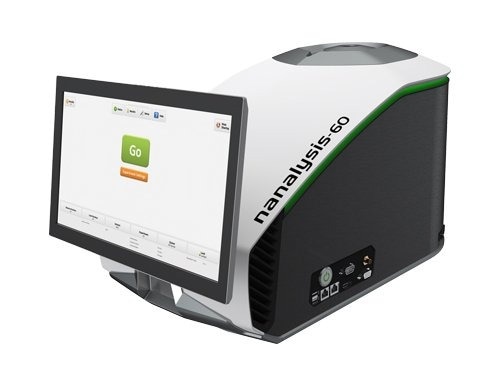

Released in March 2025, the Nanalysis-60 spectrometer evolves Nanalysis's established standard field strength technology onto the same platform as 60 MHz. It provides customers with a familiar, compact, and user-friendly product now enhanced with advanced NMR capabilities like pulse programming, gradients, and accessory compatibility (flow, autosampler, etc.).
Introducing the Nanalysis-60! Standard field strength. Superior NMR data.
Introducing the Nanalysis-60! Standard field strength. Superior NMR data. Video Credit: Nanalysis Corp.
User-Friendly and Quick
The Nanalysis-60 delivers enhanced performance, offering improved sensitivity and resolution for rapid data acquisition. Its versatile platform allows users of all skill levels to choose from pre-loaded experiments with recommended settings, customize parameters for optimized data, or even create their own pulse programs to meet diverse research needs.
Simple Reaction Monitoring
Facilitating kinetic studies, the Nanalysis-60 can be easily converted into an online reaction monitoring system by quickly exchanging standard 5 mm NMR tubes with the flow kit. The open API enables communication with external software or internal modules, simplifying the acquisition of kinetic data, allowing for straightforward generation of speciation plots, and the ability to monitor and optimize chemical reactions.
How to Set-up the Nanalysis-60 Flow Kit
How to Set-up the Nanalysis-60 Flow Kit. Video Credit: Nanalysis Corp.
Optional Features
- Remote access via smartphone, tablet, or computer.
- Non-deuterium lock options.
- Custom pulse program creation with the Experiment Designer.
- Pulsed-field gradients for faster 2D experiments and enhanced water suppression.
- IQ/OQ/PQ protocols and towards GxP-compliant modules.
- Kinetics packages for reaction monitoring.
- Automation tools for generating quantitative NMR (qNMR) data at the click of a button.
- Signal suppression options.
- API support through NMReady-CONNECT for custom applications.
Low Maintenance
Thanks to its permanent magnet design, the Nanalysis-60 requires no cryogens, preventative maintenance, or weekly service. It uses standard five-millimeter NMR tubes and features automated shimming routines. Just plug it into a standard wall outlet; no specialized staff is required.
Multinuclear Capability
The Nanalysis-60 supports a broad range of spin-active nuclei, including 1H/19F, 1H/19F/13C, 1H/19F/7 Li, 1H/19F/31P.
Please inquire about custom options.
Customizable Experience
Pre-loaded with a comprehensive library of standard NMR experiments, such as 1D, 1D{1H}, COSY, TOCSY, JRES, T1, T2, DEPT, APT, HETCOR, HSQC, HSQC-ME, HMBC, and Nutation. It has optional gradient-based pulsed programs like gCOSY, gHSQC-ME, etc., and full parameter customization is possible. Whether checking sample composition, purity, or reaction completion, you can generate meaningful results in the lab.
Quick and Easy-to-Use
Like other instruments in the Nanalysis benchtop series, the Nanalysis-60 comes with an integrated touchscreen interface, allowing users to quickly launch standard experiments or fine-tune acquisition settings. Built-in processing software supports full data analysis directly on the device, with easy export options for third-party tools or direct printing. Thanks to its exceptional sensitivity, the Nanalysis-60 delivers high-quality results in just seconds.
