Determining 3D Protein Envelopes Using an Automated Sequence of Measurement

3D envelopes, including three different proteins with low volume and dilute solutions, were established via an automated sequence of measurements.


Small-angle X-ray scattering (SAXS) is becoming an important part of structural biology techniques. It provides the appropriate information regarding the shape of proteins in solution and any associated parameters, including dynamics and macromolecule interactions. The reliability and high throughput of the measurements are crucial requirements for the capacity to effectively run samples in a structural biology laboratory.

This article outlines the quality of three-dimensional envelopes amassed on three protein samples (bovine serum albumin (BSA), lysozyme, and thyroglobulin) utilizing an automated measurement sequence, measured on the BioXolver.

Measurements & results

Concentration series were performed, using the in-line pipetting robot, which enables automate sample loading and cell cleaning in a cycle time, which is under two minutes. Three concentrations successively ran per sample, and for the measurements, 5 µL per sample condition were employed.

To determine the quality of the sample, running treatment of the data through the automated software package based on ATSAS1 facilitates rapid calculations of the corresponding 3D envelopes for each concentration.

The entire sequence of measurements was concluded in under 90 minutes, including the three concentrations per buffer and sample measurements: including from the loading of the well plate through to the generation of the final 3D envelopes. To highlight the high quality of the data, further data processing was conducted using ATSAS.

The 3D protein envelopes generated by DAMMIN2 for the lowest measured concentrations of BSA are exhibited in Figures 1 and 2. By covering the homologous crystal structure for each of the samples, collation of the calculated shape to existing crystallographic data is provided. Comparative analysis demonstrates excellent consistency of the approximated shape.

This determines the capacity to establish 3D envelopes from weakly scattering samples in short measurement time (five minutes exposure time). Comparative analysis between the synchrotron SAXS data and BioXolver measurements for the thyroglobulin sample are shown in Figure 3.

Duplication of the analysis procedure, which produced DAMMIF/DAMMIN models, was applied to both SAXS data sets. The resultant 3D envelopes are extraordinarily similar and demonstrate the high quality of the results acquired using the BioXolver in a five minutes exposure time.


The BioXolver’s capacity to yield high-quality results with a reliable, high throughput while applying small volumes of protein solution is observable in the results. It sets the scene for routine characterization of biological macromolecules in the laboratory, providing rapid feedback for formulation studies and other research.

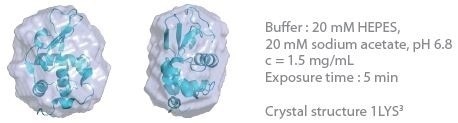

3D envelope from a lysozyme solution (Mw = 14.3 kDa).

Figure 1. 3D envelope from a lysozyme solution (Mw = 14.3 kDa). Image Credit: Xenocs

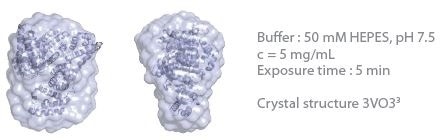

3D envelope from a BSA solution (Mw = 66 kDa).

Figure 2. 3D envelope from a BSA solution (Mw = 66 kDa). Image Credit: Xenocs

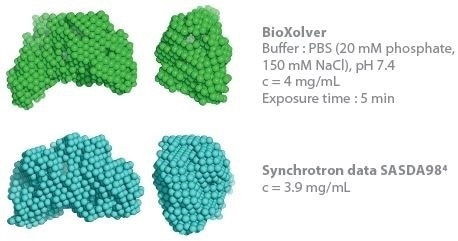

Comparison of 3D envelopes of thyroglobulin (Mw = 669 kDa).

Figure 3. Comparison of 3D envelopes of thyroglobulin (Mw = 669 kDa). Image Credit: Xenocs


  1. D. Franke et al. (2017) J. Appl. Cryst. 50
  2. D. I. Svergun (1999), Biophys J. 2879-2886.
