Overview

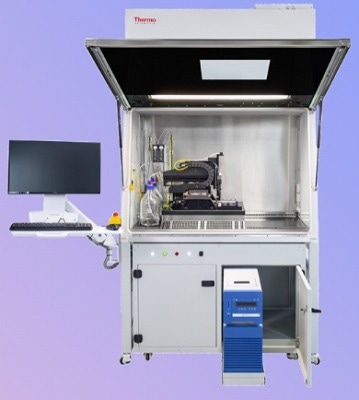

The cellenONE® X1 BSC is made to maintain native precision while preventing sample contamination and safeguarding the environment, the product, and the workforce. Its layout makes cleaning beneath the grids simple and preserves laminar flows.
Image Credit: Cellenion
CellenONE® X1 BSC can be outfitted with four fluorescent light sources for fluorescence-based single cell sorting.
Image Credit: Cellenion
Tailored for
- Single cell workflow under protection
- Single cell omics (any omics, omni- omics)
- Cell line development (any cell, any plate/substrate)
Image Credit: Cellenion
Features
- Direct visual inspection of the sample
- Full image record of isolated cells/clones
- Best-in-class clonality rate
- Up to 100% single cells
- Proven axenic single cell dispensing
- cellenONE® is delivered fully integrated in a class II biosafety cabinet
Applications
- scRNA-Seq
- scWGS
- scMS
- CRISPR/CAS9
- Stem cells
- mAb
- scATAC-Seq
- Cloning
- μ-Bio
Specifications
Source: Cellenion
| cellenONE® X1 BSC |
| Sorting Technology |
Brightfield images
Multi-fluorescence images
(Blue, Green, Orange and Red) |
| Dispensing technology |
sciDROP PICO: 150-600 pL / single drop |
| Number of Dispensing Channels |
Up to 2 |
| Spottable Area (X x Y) |
252 x 112 mm |
| Target Capacity |
2 MTPs or 8 standard glass slides |
| Axis System |
X-Y Linear Magnetic Drive, Z Spindle Drive |
| Axis Precision |
< 3 µm |
| Dimensions with Enclosure (L x W x H) |
1300 x 750 x 2330 mm |
| Weight |
535 kg |
