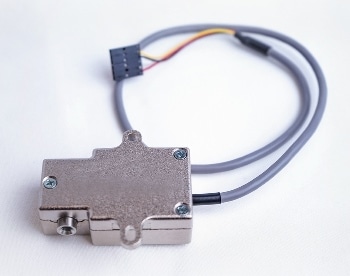

LV2 sensor: Thru-flow device for HPLC and UPLC instruments

Viatran’s original “LV2” Thru-Flow device has been customized with a smaller diameter. It is suitable for HPLC and UPLC instruments.

The original Flow-Thru sensor with zero dead volume has been altered with a smaller inner diameter of 0.020″ to bring down the internal volume to 1.6 mL.

Features

  • REACH-compliant
  • RoHS-compliant
  • Zero dead volume
  • Grade 5 titanium construction

This highly configurable model features 6Al4V titanium or 316 stainless steel wetted surfaces. Any full-scale pressure range from 2,500 to 30,000 psi is available. The excitation (input) voltage is 9.75 to 26 VDC. Other modifiable features are also available. Users can consult the factory for their specific requirements.

Specifications

Source: Viatran

. .
Internal Volume 1.6 uL
Excitation and Output 9-26 VDC Excitation, 0.5-5.5 VDC Output
(Or 5 VDC Excitation, 0.5-4.5 VDC Output By Request)
Pressure Ranges 0-2500 psig to 0-30 k psig
Wetted Material Grade 5 Titanium Alloy
Process Fitting Options 10-32
Standard Cable Length 8" with Four (4) Flying Leads
(Custom lengths available by request)
Approvals RoHS and REACH Compliant
