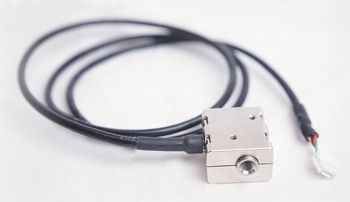

DJIP-LV-TC flow-thru sensor with decreased internal volume

Viatran’s DJIP-LV-TC is a miniaturized version of the Flow-Thru Sensor with zero dead volume.

The sensor has IP63 water ingress protection and is actively temperature-compensated to decrease temperature-related drift. It has been developed with a differential output of 0 to 4 VDC and low-noise circuitry to decrease the impacts of environmental noise.

The sensor has been customized with a smaller inner diameter of 0.020″ to decrease the internal volume to 1.6 mL.

Features

  • REACH-compliant
  • RoHS-compliant
  • Zero dead volume
  • Grade 5 titanium construction

Specifications

Source: Viatran

. .
Internal Volume 1.6 uL
Excitation and Output 5 V DC Excitation, 0-4 VDC Output with
2.75 V Nominal Common Mode Voltage
Pressure Ranges 0-2500 psig to 0-30 k psig
Wetted Material Grade 5 Titanium Alloy
Process Fitting Options 10-32
Standard Cable Length 8" with Four (4) Flying Leads
(Custom lengths available by request)
