Overview

A platform for aspirating and dispensing without contact, Cecilia-L dispenser offers incredibly accurate performance.

From 1000 µl all the way down to nanoliters

  • Up to four Ginolis PMBi pumps and dispensing tips can be configured for Cecilia-L
  • Reagents and fluids can be dispensed by the platform on a small scale with ease and consistency

Features

  • Precise
    • Integrated PMB pump technology allows for dispensing volumes as low as one nanoliter
  • Flexible
    • A flexible jig enables a wide range of applications, such as liquid handling for micro titer plates, microfluidic chip/cartridge printing, and lateral flow membrane striping
  • Dispensing tip holder and ceramic dispensing tips
  • Customizable jig for targets (slides, micro titer plates, etc.)
  • Degasser
  • Washing station

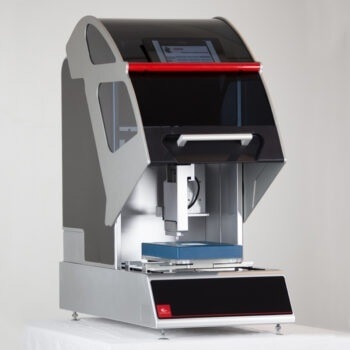

Cecilia-L Dispenser

Image Credit: Ginolis Ltd

  • RFID-coded cover for safety and cleanliness
  • Vision systems for quality inspection, positioning programming help and tip calibration
  • Ionizer

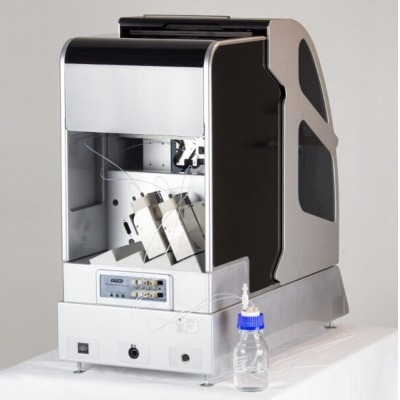

Cecilia-L Dispenser

Image Credit: Ginolis Ltd

Applications

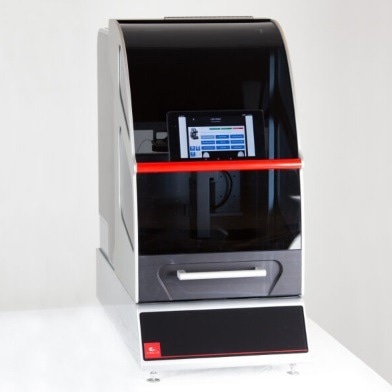

Cecilia-L Dispenser

Image Credit: Ginolis Ltd

  • On-the-fly spotting
  • Lateral flow membrane striping
  • Microfluidic chip/cartridge printing
  • Micro titer plate liquid handling
  • Biochips, Lab-on-a-Chip
  • Custom applications

Specifications

Source: Ginolis Ltd

. .
Dimensions (mm) 345x810x700 (WxHxD)
Maximum dispensing range (mm) 128 x 434
Z axis range (mm) 115
XY accuracy (mm) +/- 0.01 (absolute)
XY precision (mm) +/- 0.005 (repeatability)
XY speed Up to 1 m/s
No. of pumps 1-4
No. of tips 1-4
Dispensing speed Up to 100 drops/s
Operating system Ginolis Ginger
Dispensing pumps Ginolis PMBi pumps
Volume range
  • PMBi 150: 1 nl – 150 µl
  • PMBi 1500: 10 nl – 1500 µl
