Overview

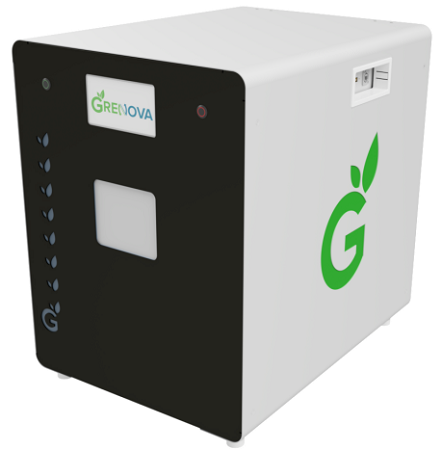

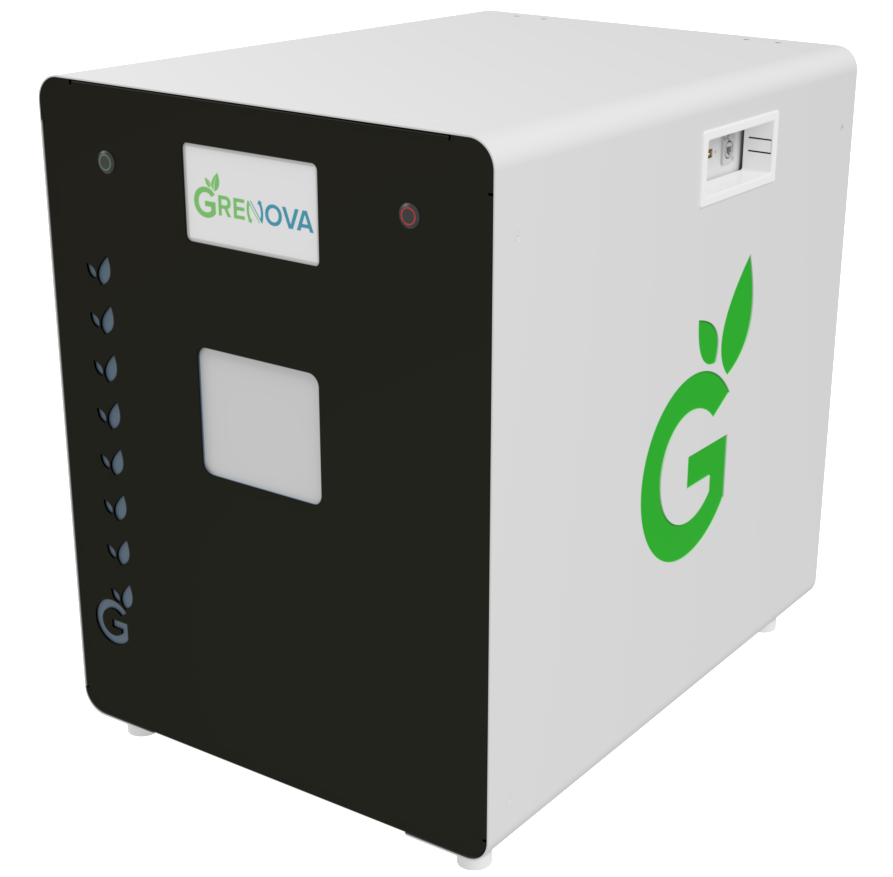

The Purus microwell plate cleaner is a novel technology that aims to introduce responsible practices into the laboratory, alleviate supply-chain limitations, and lower the costs connected with single-use plastics.
The Purus eliminates biological and chemical contaminants from 96 well plates so that they could be used again.
Image Credit: Grenova
Features
Easy to implement in the lab
- Users can just insert their microwell plates of all kinds in Purus by Grenova
- The clean cycle can be chosen
- Recover the microwell plates without any carryover
- Reuse clean microwell plates in the laboratory
- Users can repeat this process, over and over again, to decrease waste and save money
Source: Grenova
| . |
. |
| DESCRIPTION |
Automated, bench tip, microwell plate cleaning system |
| INPUT |
4 plates per cycle |
| |
Any plate with SBS footprint |
| |
Up to 50 mm tall (standard and deep well plates) |
| |
96 well format or less |
| DIMENSIONS |
28.5" D (725 MM) X 21" W (535 MM) X 28.5" H (719 MM) |
| OPERATING DATA |
Voltage: 115 VAC |
| |
Frequency: 50-60 Hz |
| |
Maximum power consumption: 12 Amps |
| |
Environment temperature range: 15 degrees C - 35 degrees C |
| |
Environment humidity: Less than or equal to 50% |
| |
Air pressure (min): Greater than or equal to 100 PSI (0.5 MPa) |
| |
Maximum reagents: 4 |
| |
UV Wavelength (UVC): 254 nm |
| MINIMUM COMPRESSOR REQUIREMENTS |
Indoor use only |
| |
Tank size: 15 gal (38 L) |
| |
Free air displacement at max pressure: Greater than 2.2 CFM @ 90 PSI |
| |
Tank pressure: 120 PSI |
| |
Output pressure: Greater than or equal to 75 PSI |
| |
Additional considerations: In line Filter, Shut off Valve and Regulator, DI water input |
| COMMUNICATION |
USB: Type A |
| THROUGHPUT |
Standard wash place: Estimated 12-20 plates per hour |
| |
Rinse only: Estimated 16-24 plates per hour |
| VOLTAGE |
110/220V availability |
