Kanazawa University Research: Researchers Define a Protocol for Narrow Cantilever Fabrication and High-Resolution Imaging of Living Cells Using AFM

Researchers at Kanazawa University report in STAR Protocols procedural details and tips for nanoendoscopy-AFM, for capturing images of nanoscale structures inside living cells.

Kanazawa University Research: Researchers Define a Protocol for Narrow Cantilever Fabrication and High-Resolution Imaging of Living Cells Using AFM

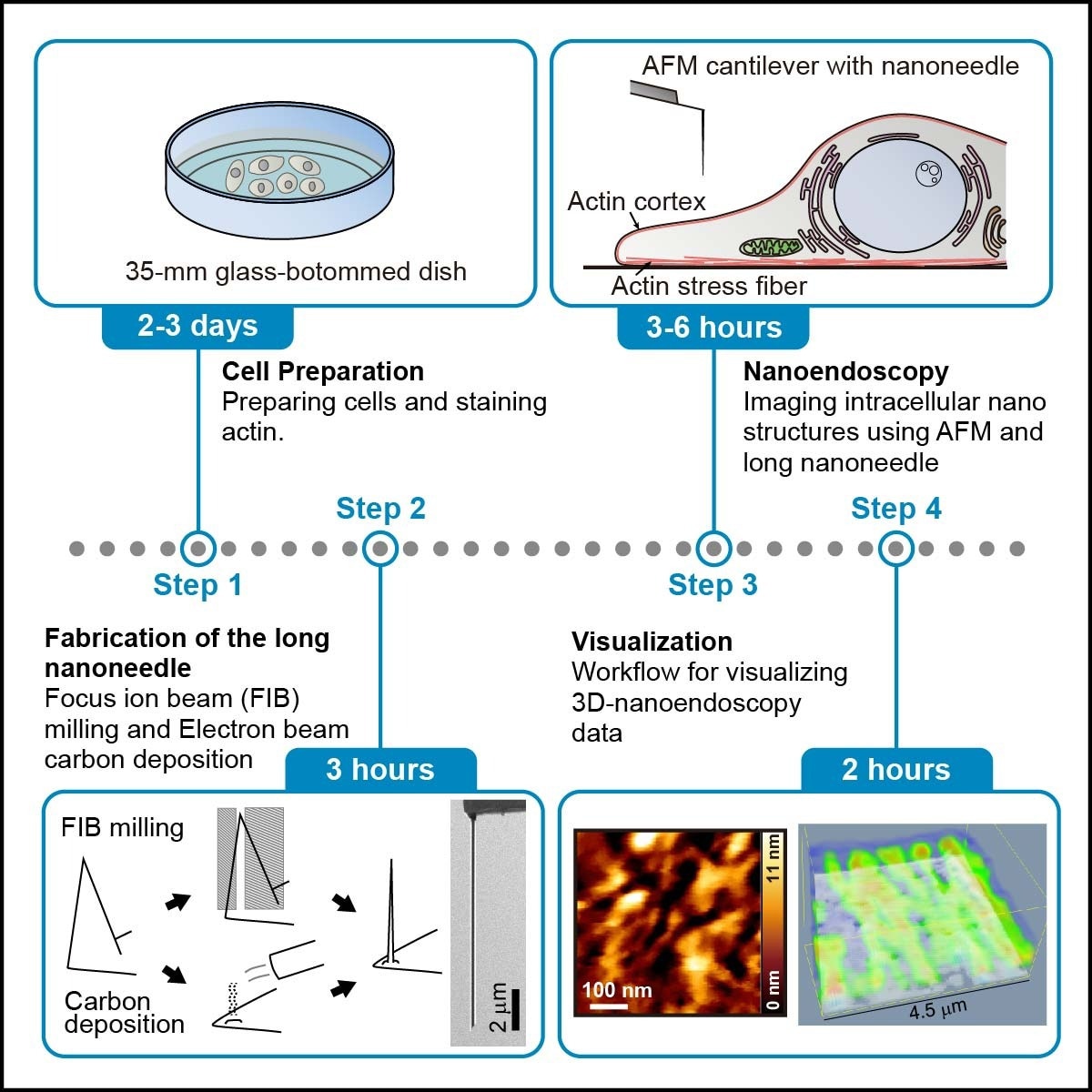

Overview of the method for observing actin fibers in living cells using nanoendoscopy-AFM. Image Credit: 2023 Ichikawa, et al., STAR Protocols

Images of nanoscale structures inside living cells are in increasing demand for insights into cellular structure and function they can reveal. So far, the tools for capturing such images have been limited in various ways, but researchers led by Takeshi Fukuma and Takehiko Ichikawa at Kanazawa University have now devised and reported a full protocol for using atomic force microscopy (AFM) to image inside living cells.

AFM was first developed in the 1980s and uses the changes in the forces between a sample surface and a nanoscale tip attached to a cantilever to "feel" surfaces and produce images of the topography with nanoscale resolution. The technique has grown increasingly sophisticated for extracting information about samples and at speeds sufficient for the tool to capture moving images of dynamics at the nanoscale. However, so far, it has been limited to surfaces. Other techniques exist that can provide a view of the inside of a cell but with limitations. For instance, there is electron microscopy, which is capable of resolving details at the nanoscale and smaller, but the required operating conditions are not compatible with living cells. Alternatively, fluorescence microscopy is regularly used on living cells, but while fluorescence techniques exist to increase the resolution, there are practical challenges that inhibit fluorescence imaging at the nanoscale. AFM suffers from neither limitation and by embellishing the tool with a nanoneedle to penetrate cells, Fukuma, Ichikawa and their collaborators have recently demonstrated the capability to image inside cells at the nanoscale, which they describe as nanoendoscopy-AFM.

In their protocol, the researchers break down the method for nanoendoscopy-AFM into 4 stages. The first few steps involve cell preparation and staining with a fluorescent dye and checking the fluorescence, which is used to identify the imaging area quickly. Next is the fabrication of the nanoneedles themselves, for which there are two options – either etching away a nanoneedle structure with a focused ion beam or building one up with electron beam deposition. Then comes the nanoendoscopy stage itself, and in the report, the researchers describe the approach for both 2D  and 3D nanoendoscopy. There are even details outlined to describe the best way to clean up after the nanoendoscopy images are captured before finally outlining the data processing needed to visualize the measured data. The method is replete with tips for successfully accomplishing each stage, as well as a guide for troubleshooting when things are not quite working out.

This technique should be suitable for the observation of intact intracellular structures, including mitochondria, focal adhesions, endoplasmic reticulum, lysosomes, Golgi apparatus, organelle connections, and liquid-liquid phase-separated structures. They conclude, "This protocol can be expected to become a standard tool for studying nanoscale structures."
