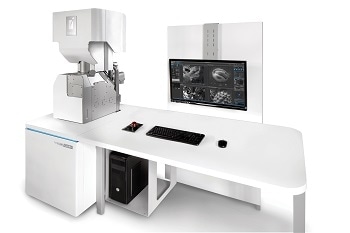

TESCAN CLARA - Field-Free Analytical UHR-SEM

The TESCAN CLARA UHR-SEM system is a scanning electron microscope (SEM) that meets the demands for high-quality images and microanalysis that regularly arise in various fields of research and technology. The TESCAN CLARA UHR-SEM system is a scanning electron microscope (SEM) that meets the demands for high-quality images and microanalysis that regularly arise in various fields of research and technology.

TESCAN CLARA is powered by the TESCAN BrightBeam™ SEM column technology, which makes use of an integrated electrostatic-magnetic objective. This offers ultra-high-resolution abilities at low accelerating voltages in a field-free fashion—a crucial feature for no-compromise imaging of all types of samples, for example, those that are magnetic.

TESCAN CLARA is equipped with a special in-column multidetector system that enables preferable collection of electrons as per their take-off angle and energy. This leads to optimum topographic and compositional data from the sample. Equipped with a filtering grid, the multidetector provides access to filter BSE and SE energies selectively and improves materials contrast and the capability to live-switch between BSE and SE signal.

The axial detector, which is the second in-column detector, has been developed to gather SE signal at optimum efficiency and any landing voltages without tangible loss of SE signal. This renders UHR-SE observation very simple and regular, even at low landing voltages.

Moreover, TESCAN CLARA can be fitted with two In-chamber detectors and an E-T detector as a standard, to offer very high signal and topographical contrast from the sample. The optional retractable low energy BSE detector gathers wide-angle BSEs and offers high-material contrast, even at low accelerating voltages.

TESCAN CLARA has also been developed for analytical purposes due to its Intermediate Lens™ and In-Flight Beam Tracing™ utilities. TESCAN CLARA has the ability to preserve high resolution even at high beam currents (of up to 400 nA), which is an advantage for everyday analytical work.

TESCAN CLARA is a truly flexible instrument and is perfect for the characterization of nanomaterials, severe quality control in the high-end manufacturing industry, as well as for Research and Development.

Key Benefits

  • Ideal for non-conductive and imaging beam-sensitive samples
  • Exclusive In-Beam BSE system enables filtering of signal based on take-off angle and energy
  • Intuitive Essence™ software, a modular platform developed for easy operation irrespective of the experience level of users
  • Field-free characterization of materials at low beam energies is enabled for optimum topography
  • Rapid configuration of electron beam—ultimate imaging and analytical conditions ensured by In-Flight Beam Tracing™
  • Accurate and intuitive live-SEM navigation on the sample at low magnification without requiring an optical navigation camera
