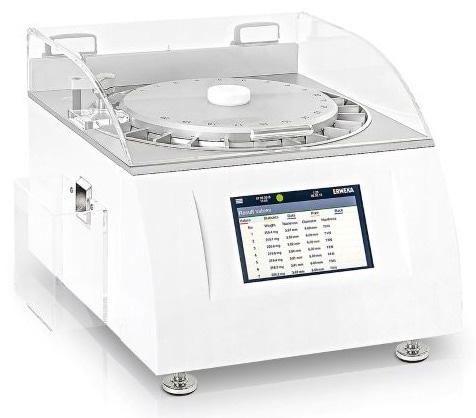

EasyCheck is the latest entry-level tablet combination tester capable of measuring up to five parameters.
The compact system's creative design elements and unwavering attention to detail make it 100% compliant with all common pharmacopeias: The Oblong Slider® automatically aligns uniformly shaped oblongs, its integrated load cell weighs samples automatically, and its user-friendly touch screen allows storing up to 100 products and methods.
The EasyCheck has a data export feature in CSV and XML formats, an audit trail light feature that complies with 21 CFR Part 11, and a test memory for up to 1 million test results stored directly on the device. It is the go-to tool for straightforward, fully automated, and highly accurate tests for up to five parameters.
EasyCheck - Fully automated, entry-level 5-parameter physical tester
Video Credit: ERWEKA
Tablet Hardness Tester EasyCheck
Overview
Integrated Weight Measurement
Integrated Weight Measurement

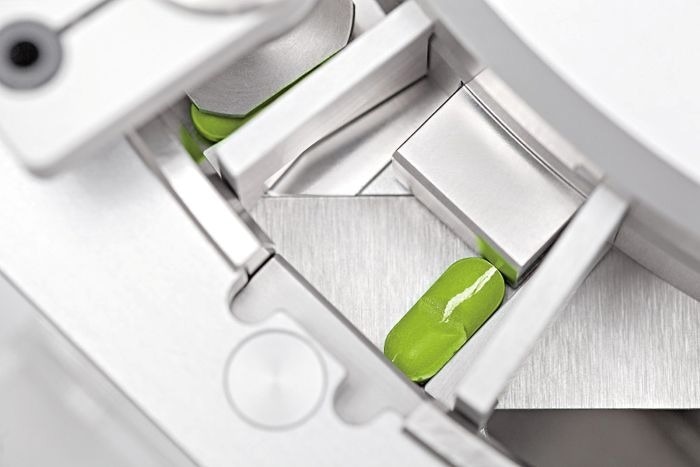

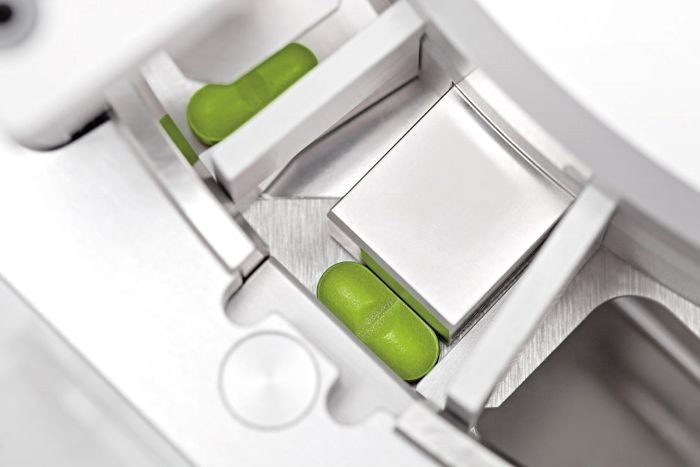

Oblong Slider®
The slider technology makes determining tablet hardness, width, and length simple by precisely aligning evenly shaped oblongs.
Test Memory and Audit Trail
EasyCheck can be outfitted with a data export feature for CSV and XML export, an audit trail light function for paperless reporting, and a test memory for up to 1 million test results.

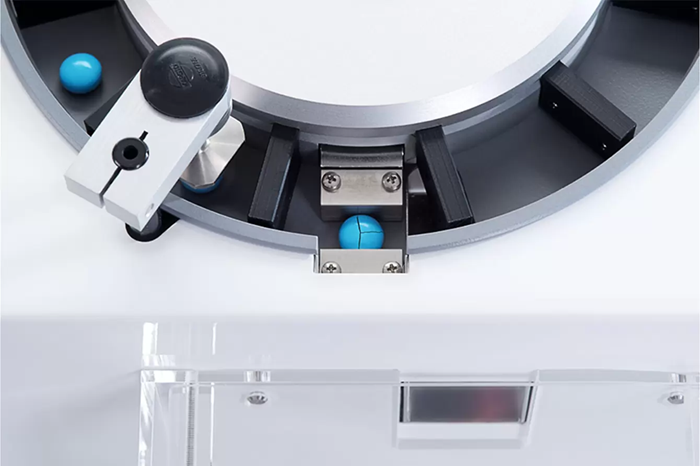

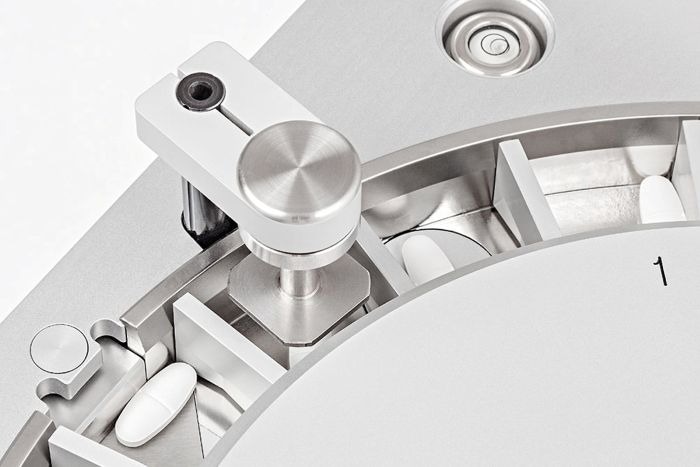

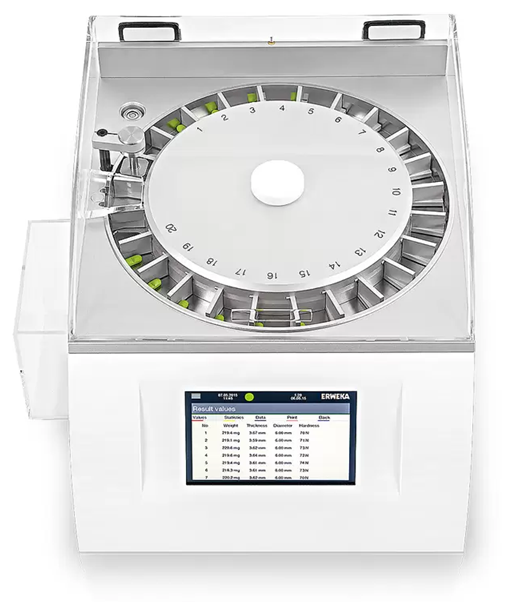

Star-Shaped Rotary Magazine
A clean, star-shaped rotary magazine made of aluminum and stainless steel provides 20 test positions for samples and allows for complete visual inspection of the test procedures at any time.
Intuitive Operation
Broad Feature Set
ERWEKA concentrated on the most crucial aspects for the user when creating the EasyCheck touch display: straightforward test method creation, execution, and documentation. Thanks to its incredibly user-friendly touch screen, the device's sophisticated features can be easily operated and controlled. It is simple and quick to start and display measurements.
The device now supports USB keyboards for easy data input (for example, when creating new products), which greatly simplifies direct data management on the device.
Test Result Storage
The device has a product memory that can store up to 1 million test results, enabling results from earlier tests to be retrieved at any time. By default, it stores 100 products and methods.
The Audit Trail Light feature (which logs What, Who, and When) and comprehensive integrated calibration functions guarantee that users always have access to accurate test results and thorough documentation of every work step—maximum usability paired with robust functionality.
Image Credit: ERWEKA
Automated Testing of Up To 5 Test Parameters
- Weight
- Thickness
- Diameter / Length
- Width
- Hardness
Automatic Calibration Tool

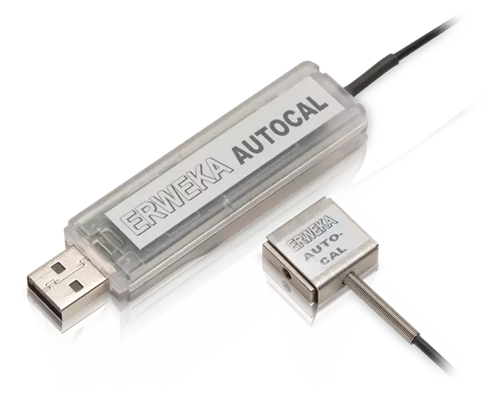

AutoCal 2.0
The ERWEKA AutoCal 2.0 system is an automated calibration tool for the hardness tester station without the need for weights, an external PC, or software.
Calibration has never been so easy: insert the certified load cell into the hardness testing station after plugging the AutoCal 2.0 USB stick into the TBH × 25's USB port.
The hardness tester's keypad and display are now used to operate the entire system (calibration and adjustment). Up to three points within the measuring range can be checked for linearity in the calibration, and the device adjusts automatically. The standard printer interface can also be used to create a documentation report.
Image Credit: ERWEKA
Image Credit: ERWEKA
Technical Data
Source:ERWEKA
| |
|
| Weight |
30 kg |
| Dimensions (H x W x D) |
321 (646 mm with open acrylic cover) x 360 (422 mm with collection container) x 467 mm |
| Voltage |
100 - 240 V / 50-60 hz / 150 W |

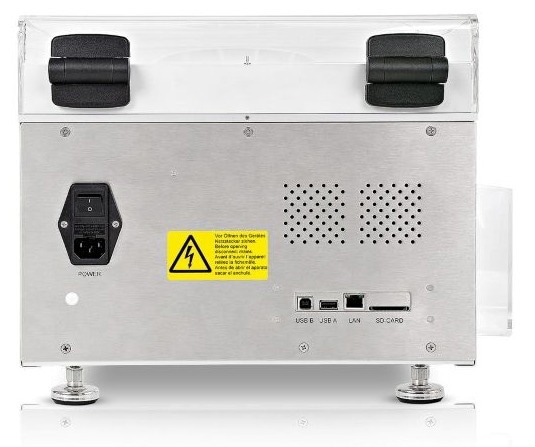

| Interfaces |
USB A for printer, USB B for PC, LAN (Ethernet - RJ45), SD-card slot |
| Control |
7'' touch display, with support for USB keyboards |
| Measurement range: Hardness |
3 - 500 N (±1 N) (optional 3 - 1000 N) |
| Measurement range: Diameter / Length |
2 - 26 mm (± 0.05 mm) |
| Measurement range: Thickness |
Linear potentiometer 2 - 10 mm (± 0.05 mm) |
| Measurement range: Weight |
Integrated Sartorius weighing cell 15,0 mg - 89 g (± 0.0001 g) |
| Measurement range: Width |
2 - 10 mm (± 0.05 mm) |
| Measurement principle: Constant speed |
0.05 - 3.00 mm / sec |
| Measurement principle: Constant force |
10 - 100 N / sec |
