Up to 8 liters of dissolution media may be prepared quickly and easily with the MediPrep 820 series in less than 15 minutes. The MediPrep 1622 prepares dissolution media three times faster than manual preparation - in just 25 minutes - meeting USP requirements.

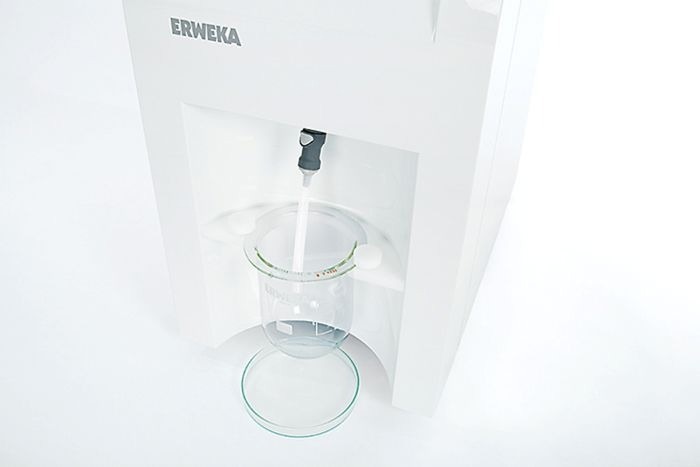

It is possible to accurately mix, heat, degas, and gravimetrically fill vessels with the media for dissolution tests in a single pass. Foaming media like sodium dodecyl sulfate (SDS) can also be utilized.

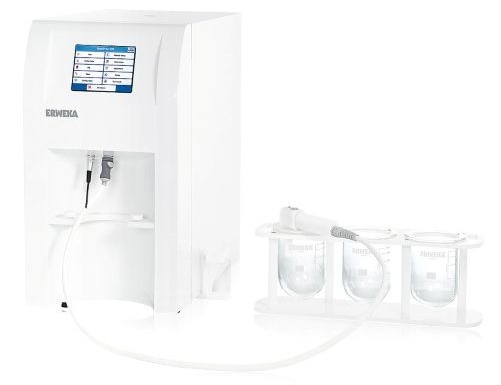

With the optional remote filling hand, containers can be filled directly or through the inbuilt dosing connection.
The MediPrep 1622 also features a wastewater outlet and two premixed media inlets. To avoid cross-contamination, an automated cleaning procedure is incorporated.
At a filling accuracy of 1% for capacities between 500 and 2000 ml, measurements for 250 ml occasionally fall short of requirements. The company advises using the MediPrep 1622 filling procedure with at least one extra vessel to guarantee a correctly filled 250 ml vessel. The extra filling should be discarded if it does not meet the required precision.
Image Credit: ERWEKA
Flexible Device for Different Use Cases
Product Highlights
- 100% USP / EP / JP compliant
Fast preparation and filling by JP, EP, and USP
- 8 liters media for dissolution tests
Preparation according to USP/EP/JP guidelines
- Integrated touchscreen control
Featuring tools for thorough media preparation documentation
Automatic cleaning procedure of container and tubings
Up to 100 media preparation methods can be stored.
Options
- MediPrep 820 without a separate inlet for prepared media or concentration
- MediPrep 1622 with two extra concentrate/prepared media inlets

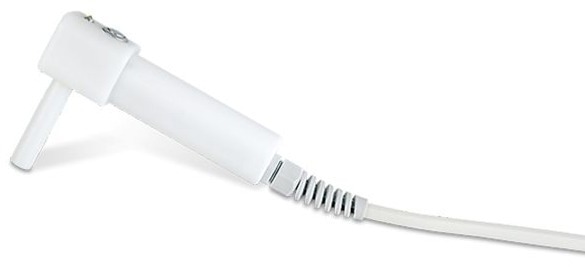

- Direct pouring into the dissolution tester using a remote-dosing hand
- Direct connection of DI water via a pressure-reducing valve if the pressure is greater than 5 bar
- MT 50 (net volume of 50 liters) media storage container
- MT 100 (100-liter volume net) media storage container

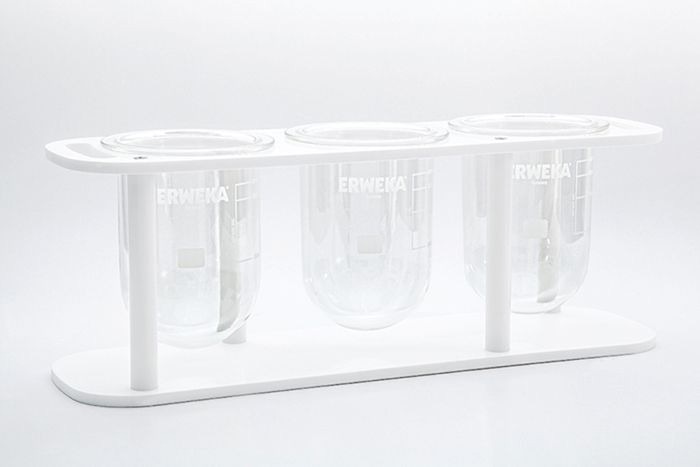

- Three-vessel rack
- Device for monitoring residual oxygen
- Calibration weight: 10.0 kg
- Calibration weight: 2.0 kg
- IQ/OQ documents
- Digital thermometer, certified
- Digital manometer, certified

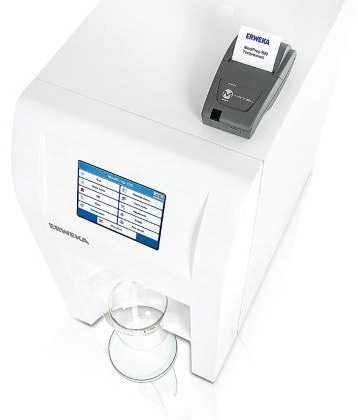

- Printer
Technical Data
Source: ERWEKA
| |
|
| Weight |
36 kg (MediPrep 820)
41 kg (MediPrep 1622) |
| Dimensions (H x W x D) |
675 x 354 x 635 mm (MediPrep 820)
692 x 367 x 645 mm (MediPrep 1622) |
| Voltage |
115 V or 230 V, 50/60 Hz |
| Interfaces |
USB-A for printer, RS-232 interface for firmware |
| Fuses |
2x15 A |
| Max. volume inside tank |
8 liters (MediPrep 820)
16 liters (MediPrep 1622) |
| Min. volume inside tank |
2 liters |
| Functions |
Vacuum degassing, heating, gravimetric filling (MediPrep 820)
Mixing, diluting, vacuum degassing, heating, gravimetric filling (MediPrep 1622) |
| Pharmacopeia conformance |
USP, EP |
| Inlet for premixed media |
1 Inlet for media from external source (MediPrep 820)
1 Inlet for media from external source, 2 inlets for concentrates (MediPrep 1622) |
| Outlet for residual or waste medium |
Yes |
| Remote dosing hand |
Optional |
| Control |
Touchpanel 7“ |
| Common aqueous media at least 2 l |
Yes |
| Time needed for media preparation |
≤ 15 minutes for 8 l, depending on the degassing time (MediPrep 820)
≤ 24 minutes for 16 l, depending on the degassing time (MediPrep 1622) |
| Mixing accuracy |
Mixing not possible (MediPrep 820)
≤ 1 % with a ratio of concentrate to water 1: 9 to 1: 1 (m / m) (MediPrep 1622) |
| Handling of foaming media (SDS) |
Up to 1 % solution at max. 6 l (MediPrep 820)
Up to 1 % solution at max. 14 l (MediPrep 1622) |
| Dosing volume, accuracy |
≤1% for 250 to 1000 ml (MediPrep 820)
≤1% for 500 to 1000 ml (MediPrep 1622) |
| Weighing accuracy |
≤ 0,1 % at 2 kg |
| Heating temperature, accuracy |
Max. 50 ° C, ± 0.2 ° C |
| Degassing pressure, accuracy |
≤ 200 mbar, ±10 mbar |
| Product memory |
Max. 100 |
| User memory |
Max. 50 users, password-protected access |
