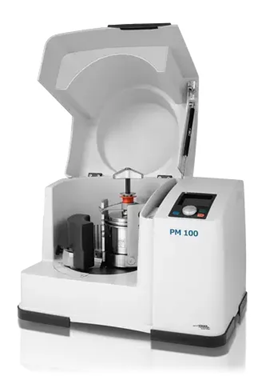

The Planetary Ball Mill PM 100 is an advanced benchtop system used for grinding up to 220 mL of sample material per batch. The system has a single grinding station and an easy-to-use counterweight, which compensates for masses up to 8 kg.
The Planetary Ball Mills have high centrifugal forces and generate very high pulverization energy, thus reducing the time taken for grinding.
The system can be found in all industries where quality control processes require improved speed, reproducibility, purity, and fineness.
The mill can be deployed in research activities, such as in mechanochemistry (co-crystal screening, mechanical alloying, mechano-synthesis, and mechanocatalysis) as well as everyday tasks such as mixing and homogenizing hard, fibrous, brittle, or soft materials.
Planetary Ball Mill Range - Introduction #RETSCH #planetaryballmill #laboratoryinstruments
PM 100 Planetary Ball Mill - Introduction video. Video Credit: Retsch GmbH

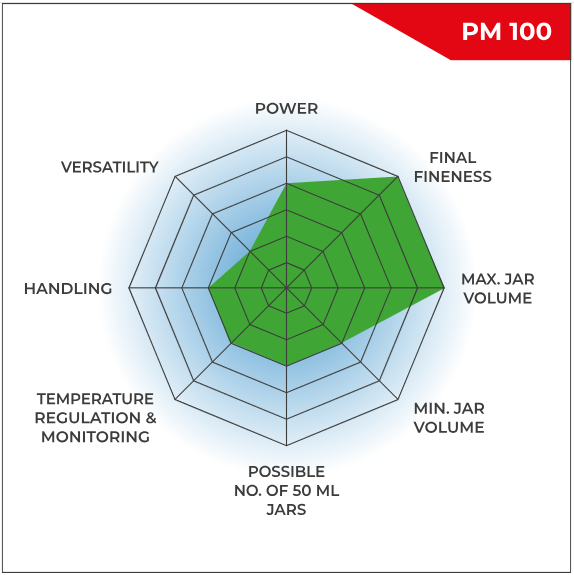

The Ideal Ball Mill for Standard Applications
- Up to 10 mm feed size and 0.1 µm final fineness
- Maximum speed 650 rpm
- Jars of 12–80 mL can be stacked (two jars each)
- GrindControl to measure temperature and pressure inside the jar
- One grinding station for jars from 12 mL up to 500 mL
- Aeration lids control the atmosphere inside the jar
- Storable standard operating procedures and cycle programs, five different jar materials for wet and dry grinding
Image Credit: Retsch GmbH
Fast and Powerful
- Wet grinding yields particle sizes in the nanometer range (< 100 nm)
- Grinding with up to 33.3× acceleration of gravity
- Variable speed from 100 to 650 rpm
- Loss-free size reduction down to the submicron range
- Two 20 mL samples per batch with stacked jars
- Speed ratio 1:-2
- Batch-wise processing with a maximum of one 220 mL sample
Image Credit: Retsch GmbH

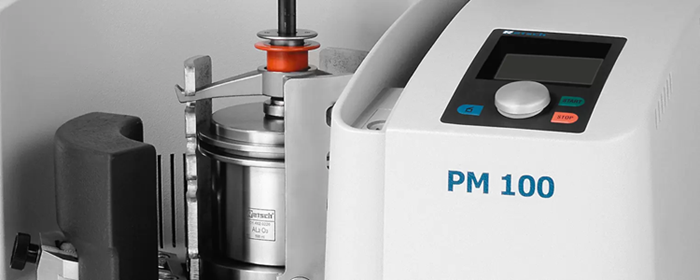

Reproducibility, Safety, and Easy Handling
- Simple and secure fastening of grinding jars
- Speed control leads to reproducible results
- Power failure backup ensures storage of the remaining processing time
- The safety slider stops the machine from starting without properly clamped jars
- Unique counterweight and imbalance sensor for unsupervised operation
- Ideal stability on the lab bench due to FFCS technology
- Automatic grinding chamber ventilation

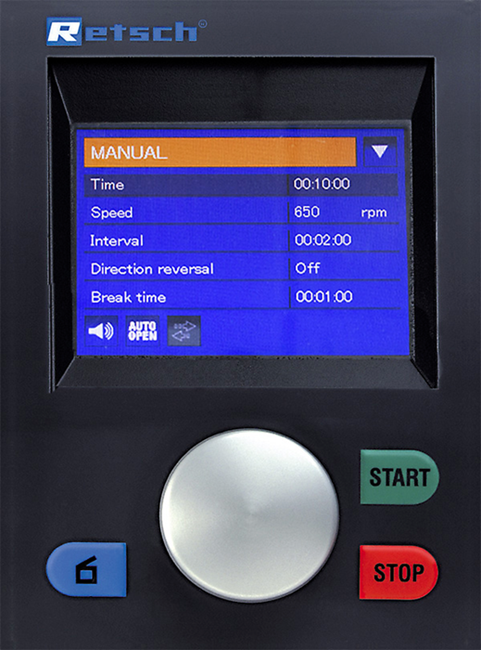

- Easy parameter setting via display and ergonomic single-button operation
- Ten standard operating procedures can be stored, programmable starting time
Settings and Options
- Direction reversal helps to reduce caking effects
- Wet and dry grinding possible
- Interval operation allows for cooling breaks
- Designed for long-term trials: 99 hours maximum
