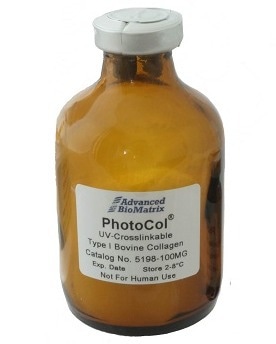

PhotoCol® is 100 mg of lyophilized methacrylated Type I collagen. PhotoCol® offers native-like 3D collagen gels having special attributes to be made at several concentrations and photocrosslinked (needs a photoinitiator) to offer gel stiffness.

Advanced BioMatrix provides PhotoCol®, a purified methacrylated Type I bovine collagen kit. PhotoCol® offers native-like 3D collagen gels with special attributes to be made at several concentrations and crosslinked to offer various gel stiffness.

PhotoCol® kits comprise purified methacrylated Type I bovine collagen as the core component with other support reagents present in the kit. This PhotoCol® product contains methacrylated collagen alone. Please select one of the “Kits” to obtain the whole photocrosslinking kit. Each kit includes the first three rows shown below, as well as the photoinitiator of choice.


Image Credit: Advanced BioMatrix

Table 1. Source: Advanced BioMatrix

Item Catalog Number Package Size Storage Temperature
Methacrylated Collagen #5198 100 mg 2-10 °C
20 mM Acetic Acid #5079 50 mL 2-30 °C
Neutralization Solution #5205 10 mL Room Temperature


The methacrylated Type I collagen has been generated from telo-peptide intact bovine collagen where the collagen has been altered by reacting the free amines, mainly the ε-amines groups of the lysine remnants as well as the a-amines groups on the N-termini. Almost, >20% of the total lysine residues of the collagen molecule have been methacrylated. The extraction of collagen has been done from bovine hide and comprises a high monomer content.

Table 2. Source: Advanced BioMatrix

Parameter, Testing, and Method Methacrylated Collagen #5198
Sterilization Method Filtration
Extraction Method Acid - Telocollagen
Form Lyophilized Powder
Degree of Methacrylation ≥ 20%
Package Size 100 mg
Storage Temperature 2-10 °C
Shelf Life Minimum of 6 months from date of receipt
Shelf Life After Reconstitution 2 months
Collagen Purity - Silver Staining ≥ 99%
Kinetic Gel Test (Minutes) ≤ 40
Gel Formation Tube Test (Minutes) ≤ 40
Electrophoretic Pattern - Coomassie Blue Characteristic
Sterility - USP modified No growth
Endotoxin (LAL) ≤ 10.0 EU/mL
Source Bovine Hide
Hydrogel Young's Modulus E (Pa) Characteristic
